La Nuova Guida Al Cracking

Instruction	Opcode (Hex)	Short Description
add	58	Adds two values and pushes the result onto the evaluation stack.
add.ovf	D6	Adds two integers, performs an overflow check, and pushes the result onto the evaluation stack.
add.ovf.un	D7	Adds two unsigned integer values, performs an overflow check, and pushes the result onto the evaluation stack.
and	5F	Computes the bitwise AND of two values and pushes the result onto the evalution stack.
arglist	FE 00	Returns an unmanaged pointer to the argument list of the current method.
beq	3B	Transfers control to a target instruction if two values are equal.
beq.s	2E	Transfers control to a target instruction (short form) if two values are equal.
bge	3C	Transfers control to a target instruction if the first value is greater than or equal to the second value.
bge.s	2F	Transfers control to a target instruction (short form) if the first value is greater than or equal to the second value.
bge.un	41	Transfers control to a target instruction if the the first value is greather than the second value, when comparing unsigned integer values or unordered float values.
bge.un.s	34	Transfers control to a target instruction (short form) if if the the first value is greather than the second value, when comparing unsigned integer values or unordered float values.
bgt	3D	Transfers control to a target instruction if the first value is greater than the second value.
bgt.s	30	Transfers control to a target instruction (short form) if the first value is greater than the second value.
bgt.un	42	Transfers control to a target instruction if the first value is greater than the second value, when comparing unsigned integer values or unordered float values.
bgt.un.s	35	Transfers control to a target instruction (short form) if the first value is greater than the second value, when comparing unsigned integer values or unordered float values.
ble	3E	Transfers control to a target instruction if the first value is less than or equal to the second value.
ble.s	31	Transfers control to a target instruction (short form) if the first value is less than or equal to the second value.
ble.un	43	Transfers control to a target instruction if the first value is less than or equal to the second value, when comparing unsigned integer values or unordered float values.
ble.un.s	36	Transfers control to a target instruction (short form) if the first value is less than or equal to the second value, when comparing unsigned integer values or unordered float values.
blt	3F	Transfers control to a target instruction if the first value is less than the second value.
blt.s	32	Transfers control to a target instruction (short form) if the first value is less than the second value.
blt.un	44	Transfers control to a target instruction if the first value is less than the second value, when comparing unsigned integer values or unordered float values.
blt.un.s	37	Transfers control to a target instruction (short form) if the first value is less than the second value, when comparing unsigned integer values or unordered float values.
bne.un	40	Transfers control to a target instruction when two unsigned integer values or unordered float values are not equal.
bne.un.s	33	Transfers control to a target instruction (short form) when two unsigned integer values or unordered float values are not equal.
box	8C	Converts a value type to an object reference (type O).
br	38	Unconditionally transfers control to a target instruction.
break	01	Signals the Common Language Infrastructure (CLI) to inform the debugger that a break point has been tripped.
brfalse	39	Transfers control to a target instruction if value is false, a null reference (Nothing in Visual Basic), or zero.
brfalse.s	2C	Transfers control to a target instruction if value is false, a null reference, or zero.
brtrue	3A	Transfers control to a target instruction if value is true, not null, or non-zero.
brtrue.s	2D	Transfers control to a target instruction (short form) if value is true, not null, or non-zero.
br.s	2B	Unconditionally transfers control to a target instruction (short form).
call	28	Calls the method indicated by the passed method descriptor.
calli	29	Calls the method indicated on the evaluation stack (as a pointer to an entry point) with arguments described by a calling convention.
callvirt	6F	Calls a late-bound method on an object, pushing the return value onto the evaluation stack.
castclass	74	Attempts to cast an object passed by reference to the specified class.
ceq	FE 01	Compares two values. If they are equal, the integer value 1 (int32) is pushed onto the evaluation stack; otherwise 0 (int32) is pushed onto the evaluation stack.
cgt	FE 02	Compares two values. If the first value is greater than the second, the integer value 1 (int32) is pushed onto the evaluation stack; otherwise 0 (int32) is pushed onto the evaluation stack.
cgt.un	FE 03	Compares two unsigned or unordered values. If the first value is greater than the second, the integer value 1 (int32) is pushed onto the evaluation stack; otherwise 0 (int32) is pushed onto the evaluation stack.
ckfinite	C3	Throws ArithmeticException if value is not a finite number.
clt	FE 04	Compares two values. If the first value is less than the second, the integer value 1 (int32) is pushed onto the evaluation stack; otherwise 0 (int32) is pushed onto the evaluation stack.
clt.un	FE 05	Compares the unsigned or unordered values value1 and value2. If value1 is less than value2, then the integer value 1 (int32) is pushed onto the evaluation stack; otherwise 0 (int32) is pushed onto the evaluation stack.
conv.i	D3	Converts the value on top of the evaluation stack to natural int.
conv.i1	67	Converts the value on top of the evaluation stack to int8, then extends (pads) it to int32.
conv.i2	68	Converts the value on top of the evaluation stack to int16, then extends (pads) it to int32.
conv.i4	69	Converts the value on top of the evaluation stack to int32.
conv.i8	6A	Converts the value on top of the evaluation stack to int64.
conv.ovf.i	D4	Converts the signed value on top of the evaluation stack to signed natural int, throwing OverflowException on overflow.
conv.ovf.i1	B3	Converts the signed value on top of the evaluation stack to signed int8 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.i1.un	82	Converts the unsigned value on top of the evaluation stack to signed int8 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.i2	B5	Converts the signed value on top of the evaluation stack to signed int16 and extending it to int32, throwing OverflowException on overflow.
conv.ovf.i2.un	83	Converts the unsigned value on top of the evaluation stack to signed int16 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.i4	B7	Converts the signed value on top of the evaluation tack to signed int32, throwing OverflowException on overflow.
conv.ovf.i4.un	84	Converts the unsigned value on top of the evaluation stack to signed int32, throwing OverflowException on overflow.
conv.ovf.i8	B9	Converts the signed value on top of the evaluation stack to signed int64, throwing OverflowException on overflow.
conv.ovf.i8.un	85	Converts the unsigned value on top of the evaluation stack to signed int64, throwing OverflowException on overflow.
conv.ovf.i.un	8A	Converts the unsigned value on top of the evaluation stack to signed natural int, throwing OverflowException on overflow.
conv.ovf.u	D5	Converts the signed value on top of the evaluation stack to unsigned natural int, throwing OverflowException on overflow.
conv.ovf.u1	B4	Converts the signed value on top of the evaluation stack to unsigned int8 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.u1.un	86	Converts the unsigned value on top of the evaluation stack to unsigned int8 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.u2	B6	Converts the signed value on top of the evaluation stack to unsigned int16 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.u2.un	87	Converts the unsigned value on top of the evaluation stack to unsigned int16 and extends it to int32, throwing OverflowException on overflow.
conv.ovf.u4	B8	Converts the signed value on top of the evaluation stack to unsigned int32, throwing OverflowException on overflow.
conv.ovf.u4.un	88	Converts the unsigned value on top of the evaluation stack to unsigned int32, throwing OverflowException on overflow.
conv.ovf.u8	BA	Converts the signed value on top of the evaluation stack to unsigned int64, throwing OverflowException on overflow.
conv.ovf.u8.un	89	Converts the unsigned value on top of the evaluation stack to unsigned int64, throwing OverflowException on overflow.
conv.ovf.u.un	8B	Converts the unsigned value on top of the evaluation stack to unsigned natural int, throwing OverflowException on overflow.
conv.r4	6B	Converts the value on top of the evaluation stack to float32.
conv.r8	6C	Converts the value on top of the evaluation stack to float64.
conv.r.un	76	Converts the unsigned integer value on top of the evaluation stack to float32.
conv.u	E0	Converts the value on top of the evaluation stack to unsigned natural int, and extends it to natural int.
conv.u1	D2	Converts the value on top of the evaluation stack to unsigned int8, and extends it to int32.
conv.u2	D1	Converts the value on top of the evaluation stack to unsigned int16, and extends it to int32.
conv.u4	6D	Converts the value on top of the evaluation stack to unsigned int32, and extends it to int32.
conv.u8	6E	Converts the value on top of the evaluation stack to unsigned int64, and extends it to int64.
cpblk	FE 17	Copies a specified number bytes from a source address to a destination address.
cpobj	70	Copies the value type located at the address of an object (type &, * or natural int) to the address of the destination object (type &, * or natural int).
div	5B	Divides two values and pushes the result as a floating-point (type F) or quotient (type int32) onto the evaluation stack.
div.un	5C	Divides two unsigned integer values and pushes the result (int32) onto the evaluation stack.
dup	25	Copies the current topmost value on the evaluation stack, and then pushes the copy onto the evaluation stack.
endfilter	FE 11	Transfers control from the filter clause of an exception back to the Common Language Infrastructure (CLI) exception handler.
endfinally	DC	Transfers control from the fault or finally clause of an exception block back to the Common Language Infrastructure (CLI) exception handler.
initblk	FE 18	Initializes a specified block of memory at a specific address to a given size and initial value.
initobj	FE 15	Initializes all the fields of the object at a specific address to a null reference or a 0 of the appropriate primitive type.
isinst	75	Tests whether an object reference (type O) is an instance of a particular class.
jmp	27	Exits current method and jumps to specified method.
ldarg	FE 09	Loads an argument (referenced by a specified index value) onto the stack.
ldarga	FE 0A	Load an argument address onto the evaluation stack.
ldarga.s	0F	Load an argument address, in short form, onto the evaluation stack.
ldarg.0	02	Loads the argument at index 0 onto the evaluation stack.
ldarg.1	03	Loads the argument at index 1 onto the evaluation stack.
ldarg.2	04	Loads the argument at index 2 onto the evaluation stack.
ldarg.3	05	Loads the argument at index 3 onto the evaluation stack.
ldarg.s	0E	Loads the argument (referenced by a specified short form index) onto the evaluation stack.
ldc.i4	20	Pushes a supplied value of type int32 onto the evaluation stack as an int32.
ldc.i4.0	16	Pushes the integer value of 0 onto the evaluation stack as an int32.
ldc.i4.1	17	Pushes the integer value of 1 onto the evaluation stack as an int32.
ldc.i4.2	18	Pushes the integer value of 2 onto the evaluation stack as an int32.
ldc.i4.3	19	Pushes the integer value of 3 onto the evaluation stack as an int32.
ldc.i4.4	1A	Pushes the integer value of 4 onto the evaluation stack as an int32.
ldc.i4.5	1B	Pushes the integer value of 5 onto the evaluation stack as an int32.
ldc.i4.6	1C	Pushes the integer value of 6 onto the evaluation stack as an int32.
ldc.i4.7	1D	Pushes the integer value of 7 onto the evaluation stack as an int32.
ldc.i4.8	1E	Pushes the integer value of 8 onto the evaluation stack as an int32.
ldc.i4.m1	15	Pushes the integer value of -1 onto the evaluation stack as an int32.
ldc.i4.s	1F	Pushes the supplied int8 value onto the evaluation stack as an int32, short form.
ldc.i8	21	Pushes a supplied value of type int64 onto the evaluation stack as an int64.
ldc.r4	22	Pushes a supplied value of type float32 onto the evaluation stack as type F (float).
ldc.r8	23	Pushes a supplied value of type float64 onto the evaluation stack as type F (float).
ldelema	8F	Loads the address of the array element at a specified array index onto the top of the evaluation stack as type & (managed pointer).
ldelem.i	97	Loads the element with type natural int at a specified array index onto the top of the evaluation stack as a natural int.
ldelem.i1	90	Loads the element with type int8 at a specified array index onto the top of the evaluation stack as an int32.
ldelem.i2	92	Loads the element with type int16 at a specified array index onto the top of the evaluation stack as an int32.
ldelem.i4	94	Loads the element with type int32 at a specified array index onto the top of the evaluation stack as an int32.
ldelem.i8	96	Loads the element with type int64 at a specified array index onto the top of the evaluation stack as an int64.
ldelem.r4	98	Loads the element with type float32 at a specified array index onto the top of the evaluation stack as type F (float).
ldelem.r8	99	Loads the element with type float64 at a specified array index onto the top of the evaluation stack as type F (float).
ldelem.ref	9A	Loads the element containing an object reference at a specified array index onto the top of the evaluation stack as type O (object reference).
ldelem.u1	91	Loads the element with type unsigned int8 at a specified array index onto the top of the evaluation stack as an int32.
ldelem.u2	93	Loads the element with type unsigned int16 at a specified array index onto the top of the evaluation stack as an int32.
ldelem.u4	95	Loads the element with type unsigned int32 at a specified array index onto the top of the evaluation stack as an int32.
ldfld	7B	Finds the value of a field in the object whose reference is currently on the evaluation stack.
ldflda	7C	Finds the address of a field in the object whose reference is currently on the evaluation stack.
ldftn	FE 06	Pushes an unmanaged pointer (type natural int) to the native code implementing a specific method onto the evaluation stack.
ldind.i	4D	Loads a value of type natural int as a natural int onto the evaluation stack indirectly.
ldind.i1	46	Loads a value of type int8 as an int32 onto the evaluation stack indirectly.
ldind.i2	48	Loads a value of type int16 as an int32 onto the evaluation stack indirectly.
ldind.i4	4A	Loads a value of type int32 as an int32 onto the evaluation stack indirectly.
ldind.i8	4C	Loads a value of type int64 as an int64 onto the evaluation stack indirectly.
ldind.r4	4E	Loads a value of type float32 as a type F (float) onto the evaluation stack indirectly.
ldind.r8	4F	Loads a value of type float64 as a type F (float) onto the evaluation stack indirectly.
ldind.ref	50	Loads an object reference as a type O (object reference) onto the evaluation stack indirectly.
ldind.u1	47	Loads a value of type unsigned int8 as an int32 onto the evaluation stack indirectly.
ldind.u2	49	Loads a value of type unsigned int16 as an int32 onto the evaluation stack indirectly.
ldind.u4	4B	Loads a value of type unsigned int32 as an int32 onto the evaluation stack indirectly.
ldlen	8E	Pushes the number of elements of a zero-based, one-dimensional array onto the evaluation stack.
ldloc	FE 0C	Loads the local variable at a specific index onto the evaluation stack.
ldloca	FE 0D	Loads the address of the local variable at a specific index onto the evaluation stack.
ldloca.s	12	Loads the address of the local variable at a specific index onto the evaluation stack, short form.
ldloc.0	06	Loads the local variable at index 0 onto the evaluation stack.
ldloc.1	07	Loads the local variable at index 1 onto the evaluation stack.
ldloc.2	08	Loads the local variable at index 2 onto the evaluation stack.
ldloc.3	09	Loads the local variable at index 3 onto the evaluation stack.
ldloc.s	11	Loads the local variable at a specific index onto the evaluation stack, short form.
ldnull	14	Pushes a null reference (type O) onto the evaluation stack.
ldobj	71	Copies the value type object pointed to by an address to the top of the evaluation stack.
ldsfld	7E	Pushes the value of a static field onto the evaluation stack.
ldsflda	7F	Pushes the address of a static field onto the evaluation stack.
ldstr	72	Pushes a new object reference to a string literal stored in the metadata.
ldtoken	D0	Converts a metadata token to its runtime representation, pushing it onto the evaluation stack.
ldvirtftn	FE 07	Pushes an unmanaged pointer (type natural int) to the native code implementing a particular virtual method associated with a specified object onto the evaluation stack.
leave	DD	Exits a protected region of code, unconditionally tranferring control to a specific target instruction.
leave.s	DE	Exits a protected region of code, unconditionally tranferring control to a target instruction (short form).
localloc	FE 0F	Allocates a certain number of bytes from the local dynamic memory pool and pushes the address (a transient pointer, type *) of the first allocated byte onto the evaluation stack.
mkrefany	C6	Pushes a typed reference to an instance of a specific type onto the evaluation stack.
mul	5A	Multiplies two values and pushes the result on the evaluation stack.
mul.ovf	D8	Multiplies two integer values, performs an overflow check, and pushes the result onto the evaluation stack.
mul.ovf.un	D9	Multiplies two unsigned integer values, performs an overflow check, and pushes the result onto the evaluation stack.
neg	65	Negates a value and pushes the result onto the evaluation stack.
newarr	8D	Pushes an object reference to a new zero-based, one-dimensional array whose elements are of a specific type onto the evaluation stack.
newobj	73	Creates a new object or a new instance of a value type, pushing an object reference (type O) onto the evaluation stack.
nop	00	Fills space if opcodes are patched. No meaningful operation is performed although a processing cycle can be consumed.
not	66	Computes the bitwise complement of the integer value on top of the stack and pushes the result onto the evaluation stack as the same type.
or	60	Compute the bitwise complement of the two integer values on top of the stack and pushes the result onto the evaluation stack.
pop	26	Removes the value currently on top of the evaluation stack.
refanytype	FE 1D	Retrieves the type token embedded in a typed reference.
refanyval	C2	Retrieves the address (type &) embedded in a typed reference.
rem	5D	Divides two values and pushes the remainder onto the evaluation stack.
rem.un	5E	Divides two unsigned values and pushes the remainder onto the evaluation stack.
ret	2A	Returns from the current method, pushing a return value (if present) from the caller's evaluation stack onto the callee's evaluation stack.
rethrow	FE 1A	Rethrows the current exception.
shl	62	Shifts an integer value to the left (in zeroes) by a specified number of bits, pushing the result onto the evaluation stack.
shr	63	Shifts an integer value (in sign) to the right by a specified number of bits, pushing the result onto the evaluation stack.
shr.un	64	Shifts an unsigned integer value (in zeroes) to the right by a specified number of bits, pushing the result onto the evaluation stack.
sizeof	FE 1C	Pushes the size, in bytes, of a supplied value type onto the evaluation stack.
starg	FE 0B	Stores the value on top of the evaluation stack in the argument slot at a specified index.
starg.s	10	Stores the value on top of the evaluation stack in the argument slot at a specified index, short form.
stelem.i	9B	Replaces the array element at a given index with the natural int value on the evaluation stack.
stelem.i1	9C	Replaces the array element at a given index with the int8 value on the evaluation stack.
stelem.i2	9D	Replaces the array element at a given index with the int16 value on the evaluation stack.
stelem.i4	9E	Replaces the array element at a given index with the int32 value on the evaluation stack.
stelem.i8	9F	Replaces the array element at a given index with the int64 value on the evaluation stack.
stelem.r4	A0	Replaces the array element at a given index with the float32 value on the evaluation stack.
stelem.r8	A1	Replaces the array element at a given index with the float64 value on the evaluation stack.
stelem.ref	A2	Replaces the array element at a given index with the object ref value (type O) on the evaluation stack.
stfld	7D	Replaces the value stored in the field of an object reference or pointer with a new value.
stind.i	DF	Stores a value of type natural int at a supplied address.
stind.i1	52	Stores a value of type int8 at a supplied address.
stind.i2	53	Stores a value of type int16 at a supplied address.
stind.i4	54	Stores a value of type int32 at a supplied address.
stind.i8	55	Stores a value of type int64 at a supplied address.
stind.r4	56	Stores a value of type float32 at a supplied address.
stind.r8	57	Stores a value of type float64 at a supplied address.
stind.ref	51	Stores a object reference value at a supplied address.
stloc	FE 0E	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at a specified index.
stloc.0	0A	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at index 0.
stloc.1	0B	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at index 1.
stloc.2	0C	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at index 2.
stloc.3	0D	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at index 3.
stloc.s	13	Pops the current value from the top of the evaluation stack and stores it in a the local variable list at index (short form).
stobj	81	Copies a value of a specified type from the evaluation stack into a supplied memory address.
stsfld	80	Replaces the value of a static field with a value from the evaluation stack.
sub	59	Subtracts one value from another and pushes the result onto the evaluation stack.
sub.ovf	DA	Subtracts one integer value from another, performs an overflow check, and pushes the result onto the evaluation stack.
sub.ovf.un	DB	Subtracts one unsigned integer value from another, performs an overflow check, and pushes the result onto the evaluation stack.
switch	45	Implements a jump table.
tail.	FE 14	Performs a postfixed method call instruction such that the current method's stack frame is removed before the actual call instruction is executed.
throw	7A	Throws the exception object currently on the evaluation stack.
unaligned.	FE 12	Indicates that an address currently atop the evaluation stack might not be aligned to the natural size of the immediately following ldind, stind, ldfld, stfld, ldobj, stobj, initblk, or cpblk instruction.
unbox	79	Converts the boxed representation of a value type to its unboxed form.
volatile.	FE 13	Specifies that an address currently atop the evaluation stack might be volatile, and the results of reading that location cannot be cached or that multiple stores to that location cannot be suppressed.
xor	61	Computes the bitwise XOR of the top two values on the evaluation stack, pushing the result onto the evaluation stack.

Se vi servono informazioni aggiuntive riguardo alle specifiche dell'instruction set potete consultare l'MSDN oppure il documento "Partition III CIL.doc" nella cartella "\SDK\v1.1\Tool Developers Guide\docs" del vostro Visual Studio.

Sì, lo so, il linguaggio vi pare ancora molto estraneo, ma vedrete che vi ci abituerete presto, anzi l'IL come vedrete non è nemmeno difficile. E poi considerate un vantaggio: potrete reversare applicazioni per ogni dispositivo che supporta .NET, quindi, oltre al pc, palmari e telefoni, senza dover imparare una nuova sintassi. Come piccolo schemettino di gruppi principali di istruzioni possiamo dire che:

- i vari bgt, ble, bne, br ecc. sono i jump.
- i conv servono per convertire grandezze diverse di valori (tipo da byte a qword ecc.).
- i vari ldc, ldarg, ldelem ecc. corrispondono ai push (prendete per buono che tutte le istruzioni che cominciano con ld sono dei push).
- i vari stloc, starg, stelem ecc corrispondo ai pop (st*).

Per il resto molte istruzioni sono le stesse (quelle logico/matematiche ad esempio (xor, and, mul, sub ecc.)), anche se esistono anche dei falsi amici (il pop in IL non corrisponde esattamente al pop in asm). Ad ogni modo queste cose le vedrete strada facendo. Se avete un dubbio su un'istruzione, ricorrete alla tabella.

Vediamo una nuova applicazione che fa qualcosina in più rispetto a quella che abbiamo visto prima. Per adesso affianco il codice C# al disassemblato per rendere le cose più chiare, fra poco però smetterò di farlo e passeremo direttamente a vedere il codice in IL cercando di capire cosa fa.

using System;

namespace SimpleApplication
{
   class SimpleClass
   {
      static void Main()
      {
         int Res = Calc(65535, 3, 5);
         Console.Write("Result: ");
         Console.WriteLine(Res);
         Console.ReadLine();
      }

      static int Calc(int OriginalNumber, Byte a, Byte b)
      {
         return (OriginalNumber >> (a + b));
      }
   }
}

Questo codice non fa altro che chiamare la funzione Calc dalla Main, questa funzione ha tre parametri, un intero e due byte, i bit dell'intero vengono shiftati di un numero pari ad a più b. Dopodiché nella main viene stampato il risultato. In questo caso immettendo 65535 (FFFFh) come numero originale e shiftando di 8 bit otterremo 255 (FFh) come risultato. La ReadLine all'interno del codice l'ho messa affinché il programma non si chiuda subito se eseguito ma aspetti un input da parte dell'utente. Sì il codice non serve a nulla ma basta a noi per dare un occhio al linguaggio. Vediamo adesso il codice coll'ildasm. Partiamo dalla main:

.method private hidebysig static void Main() cil managed
{
.entrypoint
// Code size       36 (0x24)
.maxstack 3
.locals init (int32 V_0)
IL_0000: ldc.i4     0xffff
IL_0005: ldc.i4.3
IL_0006: ldc.i4.5
IL_0007: call       int32 SimpleApplication.SimpleClass::Calc(int32,
                                                                 unsigned int8,
                                                                 unsigned int8)
IL_000c: stloc.0
IL_000d: ldstr      "Result: "
IL_0012: call       void [mscorlib]System.Console::Write(string)
IL_0017: ldloc.0
IL_0018: call       void [mscorlib]System.Console::WriteLine(int32)
IL_001d: call       string [mscorlib]System.Console::ReadLine()
IL_0022: pop
IL_0023: ret
} // end of method SimpleClass::Main

Allora l'IL è stack based come fra poco potremmo ben vedere, .maxstack ci dice che all'interno di questo metodo non vengono caricati sullo stack (virtual stack ovviamente) mai di più di 3 valori. La lista e l'inizializzazione delle variabili locali del metodo viene effettuata tramite .locals init, in questo caso ne abbiamo una sola (Res che è un Int32). Analizziamo la riga di codice che immediatamente segue.

IL_0000: ldc.i4     0xffff

Questa istruzione pusha un Int32 sull'evaluation stack, sarebbe il nostro 65535. A seguire vi sono le istruzioni ldc.i4.3 e ldc.i4.5 che pushano i valori 3 e 5 (se il numero è piccolo (tra 0 e 8) è possibile usare ldc.i4 seguito da un punto e il numero da pushare, ricordate che non è che si può fare per ogni valore ciò). Come potete notare lo stack nell'IL non è come quello a cui siamo abituati, ovvero LIFO (Last In, First Out). Nell'IL i parametri vengono pushati nell'ordine che la funzione prevede.

IL_0007: call       int32 SimpleApplication.SimpleClass::Calc(int32,
                                                                 unsigned int8,
                                                                 unsigned int8)

Viene chiamata la funzione. L'ildasm ci fornisce anche namespace e classe del metodo chiamato. Vediamo poi l'istruzione:

IL_000c: stloc.0

Questa istruzione poppa (da pop) il valore corrente sulla cima dello stack e lo mette nella lista delle variabili locali all'index 0. In pratica mette il valore di ritorno della funzione che sta in cima allo stack dentro a Res (variabile locale).

IL_000d: ldstr      "Result: "

Pusha sullo stack la stringa "Result: ". In verità pusha un reference alla stringa che si trova nella metadata dell'eseguibile.

IL_0012: call       void [mscorlib]System.Console::Write(string)

Chiama l'overload per stringhe della funzione Write.

IL_0017: ldloc.0

Pusha la variabile locale a index 0 (Res) sullo stack.

IL_0018: call       void [mscorlib]System.Console::WriteLine(int32)

Chiama l'overload della funzione WriteLine per interi a 32 bit. Dopodiché chiama la ReadLine.

IL_0022: pop

Rimuove il valore corrente in cima allo stack (sarebbe il valore di ritorno di ReadLine che in ogni caso non mettiamo in nessuna variabile, quindi basta toglierlo di mezzo con pop senza usare stloc). Segue il ret che conclude il metodo. Bene, adesso passiamo alla funzione Calc.

.method private hidebysig static int32 Calc(int32 OriginalNumber,
                                             unsigned int8 a,
                                             unsigned int8 b) cil managed
{
// Code size       9 (0x9)
.maxstack 3
IL_0000: ldarg.0
IL_0001: ldarg.1
IL_0002: ldarg.2
IL_0003: add
IL_0004: ldc.i4.s   31
IL_0006: and
IL_0007: shr
IL_0008: ret
} // end of method SimpleClass::Calc

Dove:

IL_0000: ldarg.0
IL_0001: ldarg.1
IL_0002: ldarg.2

Caricano sullo stack i tre argomenti passati al metodo. Il numero che segue ldarg specifica la posizione dell'argomento. Il primo è OriginalNumber (0) seguono a e b.

IL_0003: add

Somma i due valori in cima allo stack, in questo caso a e b, e pusha il risulato in cima allo stack. Dopo questa operazione il nostro stack avrà questo aspetto:

OriginalNumber
ResultOfAddBetweenA_And_B     ; cima dello stack

Poi:

IL_0004: ldc.i4.s   31

Pusha sullo stack in forma di int32 il valore di 8bit che segue l'istruzione, in questo caso 31d (ildasm ci mostra un numero decimale, attenzione). Quindi il nostro stack adesso avrà questo aspetto:

OriginalNumber
ResultOfAddBetweenA_And_B
NumberOf31Decimal             ; cima dello stack

Quindi:

IL_0006: and

questo and viene effettuato tra la somma di a-b e il numero 31. In pratica questo and serve ad assicurarsi che il nostro numero non superi 31. Vi chiederete come mai. È presto detto, l'and fa in modo che possiamo usare lo shift anche come rotate. Se per esempio vogliamo shiftare di 32 posizioni, lui fa l'and con 31 e torna 0, quindi shifta di 0, dato che col rotate shiftando di 32 posizioni ci ritroveremmo il numero non modificato in mano. Ad ogni modo, essendo il nostro numero 8, esso resta come è e ci ritroviamo con questo stack:

OriginalNumber
NumberOf8                    ; cima dello stack

IL_0007: shr

Shifta a destra l'original number di 8 posizioni e pusha il risultato sullo stack (essendo esso il valore di ritorno segue il ret. Insomma come abbiamo già visto nel main il valore di ritorno di un metodo si trova in cima allo stack e non in eax (vabbe' ovvio non abbiamo registri) come siamo abituati.

Siccome so che limitarsi ad analizzare codice non è molto divertente, iniziamo col cracking. Tanto le istruzioni che ancora non avete visto le imparerete via via. Per ora basta che siate entrati nella logica dell'Intermediate Language.

Cracking

Partiamo immediatamente da un esempio facilissimo. Stavolta non vi faccio vedere prima il codice, dato che adesso siamo nel paragrafo di cracking e poi l'esempio è veramente banale. Dato che tutto il codice sta nel main vi incollo solo quello:

.method private hidebysig static void Main() cil managed
{
.entrypoint
// Code size       58 (0x3a)
.maxstack 2
.locals init (string V_0,
           int32 V_1)
IL_0000: call       string [mscorlib]System.Console::ReadLine()
IL_0005: stloc.0
IL_0006: ldloc.0
IL_0007: call       int32 [mscorlib]System.Convert::ToInt32(string)
IL_000c: stloc.1
IL_000d: ldloc.1
IL_000e: ldc.i4     0x29a
IL_0013: xor
IL_0014: stloc.1
IL_0015: ldloc.1
IL_0016: ldc.i4     0x539
IL_001b: beq.s      IL_0029
IL_001d: ldstr      "Invalid Serial Number"
IL_0022: call       void [mscorlib]System.Console::WriteLine(string)
IL_0027: br.s       IL_0033
IL_0029: ldstr      "Thank You For Registering"
IL_002e: call       void [mscorlib]System.Console::WriteLine(string)
IL_0033: call       string [mscorlib]System.Console::ReadLine()
IL_0038: pop
IL_0039: ret
} // end of method SimpleClass::Main

Allora:

IL_0000: call       string [mscorlib]System.Console::ReadLine()

Ci chiede di immettere una stringa.

IL_0005: stloc.0
IL_0006: ldloc.0

Prende la stringa (valore di ritorno della funzione ReadLine) e la pusha sullo stack.

IL_0007: call       int32 [mscorlib]System.Convert::ToInt32(string)

Converte la stringa in un intero a 32bit.

IL_000c: stloc.1
IL_000d: ldloc.1

Prende il valore di ritorno, ovvero il numero convertito e lo pusha sullo stack.

IL_000e: ldc.i4     0x29a

pusha sullo stack 29Ah (666d).

IL_0013: xor

Fa lo xor tra 666d e il numero da noi immesso. Ci ritroviamo ovviamente il risultato sullo stack.

IL_0014: stloc.1
IL_0015: ldloc.1

Prende il risultato dallo stack (mettendolo nella stessa variabile del numero immesso) e lo pusha sullo stack.

IL_0016: ldc.i4     0x539

Pusha sullo stack il valore 539h (1337d).

IL_001b: beq.s      IL_0029

Eccoci arrivati al salto condizionale. Questa istruzione salta all'istruzione all'offset IL_0029 se i due valori sullo stack sono uguali. Se il salto non viene eseguito (ovvero se i valori non coincidono) ci troviamo di fronte questo codice:

IL_001d: ldstr      "Invalid Serial Number"
IL_0022: call       void [mscorlib]System.Console::WriteLine(string)
IL_0027: br.s       IL_0033

ldstr e call mi sembrano chiari. br.s però non l'avete ancora visto, si tratta del salto incondizionale (jmp) che ci porta al termine del programma. Se invece i valori coincidono e il salto viene eseguito, ci troviamo qua:

IL_0029: ldstr      "Thank You For Registering"
IL_002e: call       void [mscorlib]System.Console::WriteLine(string)

Ovvero il programma risulta registrato. Ora, è chiaro che l'algo è molto banale:

If (Serial Xor 666) = 1337 Then

E la risoluzione è evidente, basta inserire come seriale 1955. Proviamo però adesso a crackare il programma, cioè modificare le istruzioni, visto che tecnicamente per averlo crackato è quello che ci manca. Per fare tutto ciò sarebbe però utile che il nostro amatissimo disassembler ci desse anche gli opcode delle varie istruzioni (nonché l'indirizzo da dove inizia il metodo in questione). Niente di più semplice, è sufficiente andare sul menu dell'ildasm sotto la voce view e clickare su "Show Bytes". Riapriamo adesso il codice del main:

.method private hidebysig static void Main() cil managed
// SIG: 00 00 01
{
.entrypoint
// Method begins at RVA 0x2050
// Code size       58 (0x3a)
.maxstack 2
.locals init (string V_0,
           int32 V_1)
IL_0000: /* 28   | (0A)000001       */ call       string [mscorlib]System.Console::ReadLine()
IL_0005: /* 0A   |                  */ stloc.0
IL_0006: /* 06   |                  */ ldloc.0
IL_0007: /* 28   | (0A)000002       */ call       int32 [mscorlib]System.Convert::ToInt32(string)
IL_000c: /* 0B   |                  */ stloc.1
IL_000d: /* 07   |                  */ ldloc.1
IL_000e: /* 20   | 9A020000         */ ldc.i4     0x29a
IL_0013: /* 61   |                  */ xor
IL_0014: /* 0B   |                  */ stloc.1
IL_0015: /* 07   |                  */ ldloc.1
IL_0016: /* 20   | 39050000         */ ldc.i4     0x539
IL_001b: /* 2E   | 0C               */ beq.s      IL_0029
IL_001d: /* 72   | (70)000001       */ ldstr      "Invalid Serial Number"
IL_0022: /* 28   | (0A)000003       */ call       void [mscorlib]System.Console::WriteLine(string)
IL_0027: /* 2B   | 0A               */ br.s       IL_0033
IL_0029: /* 72   | (70)00002D       */ ldstr      "Thank You For Registering"
IL_002e: /* 28   | (0A)000003       */ call       void [mscorlib]System.Console::WriteLine(string)
IL_0033: /* 28   | (0A)000001       */ call       string [mscorlib]System.Console::ReadLine()
IL_0038: /* 26   |                  */ pop
IL_0039: /* 2A   |                  */ ret
} // end of method SimpleClass::Main

Come ci dice il disassembler sotto la direttiva .entrypoint il metodo inizia al RVA 2050h, che nel nostro caso corrisponde al file offset 1050h. Il salto condizionale da patchare è:

IL_001b: /* 2E   | 0C               */ beq.s      IL_0029

E lo possiamo invertire, oppure convertire in salto incondizionale. In verità in IL non ha molto senso invertire il salto dato che gli opcode hanno la stessa lunghezza, quindi è meglio renderlo incondizionale. Per fare ciò dobbiamo sostituire l'opcode 2Eh con 2Bh. Però Alt, in IL le cose sono un po' diverse dall'assembly, e dobbiamo fare alcune considerazioni in più. Queste considerazioni riguardano lo stack. Noi siamo abituati al cmp che non fa uso di alcuno stack, ma in IL i valori da confrontare sono sullo stack, quindi se trasformiamo un salto condizionale in uno incondizionale (che ovviamente non prenderà nessun valore dallo stack) dobbiamo assicurarci di non impegnare lo stack. Quindi:

IL_0015: /* 07   |                  */ ldloc.1
IL_0016: /* 20   | 39050000         */ ldc.i4     0x539
IL_001b: /* 2E   | 0C               */ beq.s      IL_0029

È necessario patchare col nop (00h) i due ld e poi rimpiazzare 2Eh con 2Bh. Prendiamo un hex editor e patchiamo, fatto ciò ci ritroviamo di fronte questo codice:

.method private hidebysig static void Main() cil managed
// SIG: 00 00 01
{
.entrypoint
// Method begins at RVA 0x2050
// Code size       58 (0x3a)
.maxstack 2
.locals init (string V_0,
           int32 V_1)
IL_0000: /* 28   | (0A)000001       */ call       string [mscorlib]System.Console::ReadLine()
IL_0005: /* 0A   |                  */ stloc.0
IL_0006: /* 06   |                  */ ldloc.0
IL_0007: /* 28   | (0A)000002       */ call       int32 [mscorlib]System.Convert::ToInt32(string)
IL_000c: /* 0B   |                  */ stloc.1
IL_000d: /* 07   |                  */ ldloc.1
IL_000e: /* 20   | 9A020000         */ ldc.i4     0x29a
IL_0013: /* 61   |                  */ xor
IL_0014: /* 0B   |                  */ stloc.1
IL_0015: /* 00   |                  */ nop
IL_0016: /* 00   |                  */ nop
IL_0017: /* 00   |                  */ nop
IL_0018: /* 00   |                  */ nop
IL_0019: /* 00   |                  */ nop
IL_001a: /* 00   |                  */ nop
IL_001b: /* 2B   | 0C               */ br.s       IL_0029
IL_001d: /* 72   | (70)000001       */ ldstr      "Invalid Serial Number"
IL_0022: /* 28   | (0A)000003       */ call       void [mscorlib]System.Console::WriteLine(string)
IL_0027: /* 2B   | 0A               */ br.s       IL_0033
IL_0029: /* 72   | (70)00002D       */ ldstr      "Thank You For Registering"
IL_002e: /* 28   | (0A)000003       */ call       void [mscorlib]System.Console::WriteLine(string)
IL_0033: /* 28   | (0A)000001       */ call       string [mscorlib]System.Console::ReadLine()
IL_0038: /* 26   |                  */ pop
IL_0039: /* 2A   |                  */ ret
} // end of method SimpleClass::Main

Adesso il programma, se eseguito, si registra con qualsiasi valore che immettiamo. Adesso facciamo il reversing di qualcosa di più complesso (a livello di IL s'intende), tanto patchare lo sappiamo già fare. Stavolta si lavora su un programma con finestre. Apriamo l'ildasm e ci troviamo di fronte a questo:

In verità la cosa utile per quanto riguard il debugging di applicazioni .NET sono i breakpoint. Questo perché se vogliamo crackare è necessario ragionare in IL e il debugger essendo una merda ci fornisce solo il codice asm. I debugger lo possiamo utilizzare per trovare un punto che ci interessa del codice o verificare se una data routine si occupa di una certa cosa. La sintassi più comune (per le altre vedetevi la tabella) del comando breakpoint sarebbe questa:

b ModuleName !Namespace.Class::Function

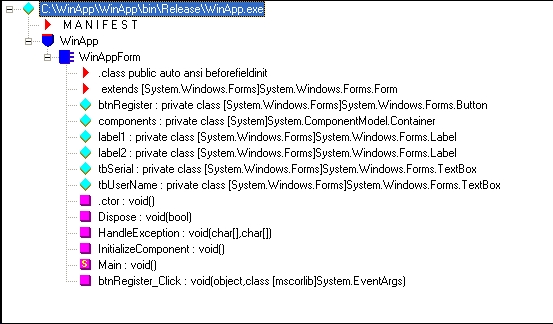

Prendiamo per esempio la winapp con cui abbiamo lavorato finora. Mettiamo di voler verificare che effettivamente il btnRegister_Click sia la funzione richiamata quando pigiamo il bottone Register. Avviamo il debugger e immettiamo:

r WinApp.exe

r sta per run. Dopodiché settiamo il breakpoint con:

b WinApp.exe !WinApp.WinAppForm::btnRegister_Click

Se il breakpoint è settato correttamente il debugger vi dirà che è active, altrimenti vi dirà che è unbound, significa che il debugger non è riuscito a trovare la locazione di codice. Questo potrebbe essere legato a diversi motivi, chessò applicazione non ancora avviata (magari non avete fatto run) oppure che avete scritto male il nome di classe/funzione. Comunque in questo caso il breakpoint è attivo. Adesso dobbiamo fare g (go) per continuare l'esecuzione dell'applicazione (il tracing ricomincerà appena occorrerà un evento di debug, quale il nostro breakpoint). Adesso pigiamo Register nell'applicazione e vedremo il debugger poppare e l'applicazione bloccarsi. In questo modo abbiamo verificato quale routine andare a reversare. Il lavoro di reversing vero e proprio per adesso ve lo fate da disassembler ma tanto l'IL è semplice e come presto vedremo anche troppo. Ad ogni modo potete settare breakpoint anche su funzioni esterne, se ricordate all'interno della HandleException veniva chiamata la funzione:

IL_0032: call int32 [mscorlib]System.Convert::ToInt32(string, int32)

Posso benissimo mettere un breakpoint su questa funzione. Intanto cancelliamo il breakpoint di prima con del 1 (scrivete del e basta per cancellare tutti i bp) dopodiché scrivete:

b mscorlib.dll !System.Convert::ToInt32

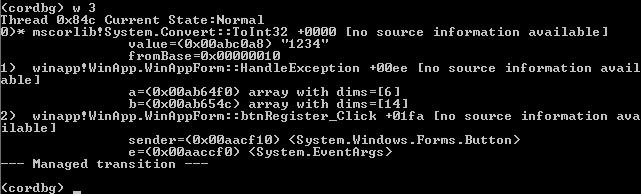

Di nuovo g e vedrete appena pigiate register (inserendo ovviamente username e serial della lunghezza giusta) il debugger poppare. Sì, ma adesso noi non sappiamo da dove è stato chiamato quel ToInt32.. Per rimediare a ciò è necessario digitare il comando w (where) seguito dal numero di calling sequence che vogliamo vedere (3 direi è sufficiente per individuare il punto esatto). Dovreste vedere una cosa di questo genere:

ap[pdomainenum] [option]	Enumerates all application domains, assemblies, and modules in the current process. If you do not specify the option argument, the command lists all application domains, assemblies, and modules in the current process. After detaching or attaching, you must specify the go command to resume execution. The option argument can be one of the following: attach Lists the application domains in the process and prompts the user to select the domain to attach to. detach Lists the application domains in the process and prompts the user to select the domain to detach from. 0 Lists the application domains in the process. 1 Lists the application domains and assemblies in the process.
as[sociatesource] {s\|b breakpoint id} filename	Associates the given file name with the current stack frame pointer (option s) or the specified breakpoint (option b).
a[ttach] pid	Attaches the debugger to a running process. Cordbg.exe kills the program that it is currently debugging (if there is one), and attempts to attach to the process specified by the pid argument. The process identification number pid can be in decimal or hexadecimal format.
b[reak] [[file:] line number] \| [[ class::] function [:offset]]	Sets or displays breakpoints. If you do not specify any arguments, the tool displays a list of current breakpoints; otherwise, it sets a breakpoint at the specified location. You can set a breakpoint at a line number in the current source file, a line number in a fully qualified source file, or in a method qualified by a class and optional offset. Breakpoints persist across runs in a session. You can use the stop command the same way you use break. Cordbg.exe displays breakpoints as "unbound" if the specified breakpoint location cannot be bound to code. When a breakpoint is unbound, it means that the underlying code for the breakpoint location has not been loaded yet. This can happen for a number of valid reasons, such as a misspelled file or class name (they are case-sensitive). Also, breakpoints will be unbound if you set them before running an application. Breakpoints become bound when the real code is loaded. The debugger tries to automatically rebind every unbound breakpoint when it loads a module.
ca[tch] [event]	Displays a list of event types, or causes the specified event type to stop the debugger. If you do not specify an argument, the tool displays a list of event types, where event types that stop the debugger are marked "on," and event types that are ignored are marked "off." If you specify an argument, the debugger stops when events of the specified type occur. By default, the debugger only stops on unhandled exception events (that is, second chance exceptions). Event types that stop the debugger persist across runs in a session. To cause the debugger to ignore a particular type of event, use the ignore command. The event argument can be one of the following: e[xceptions] [exception type] The tool adds the exception type to a list of first chance exceptions to catch. If you do not specify an exception type, the tool catches all first chance exceptions. The exception type is case sensitive, for example, System.ArgumentException. u[nhandled] Unhandled exceptions c[lass] Class load events m[odule] Module load events t[hread] Thread start events
cont [count]	Continues the program. If you do not specify an argument, the program continues once. If you do specify an argument, the program continues the specified number of times. This command is useful for continuing a program when a class load event, exception, or breakpoint stops the debugger. You can use the go command the same way you use cont.
del[ete] [breakpoint id, ...]	Deletes breakpoints. If you do not specify any arguments, the tool deletes all current breakpoints. If you specify one or more breakpoint id arguments, the tool deletes the specified breakpoints. You can obtain breakpoint identifiers by using the break or stop commands. You can use the remove command the same way you use delete.
de[tach]	Detaches the debugger from the current process. The process automatically continues and runs as if a debugger is not attached to it.
dis[assemble] [0xaddress][{+\|-} delta] [line count]	Displays native disassembled instructions for the current instruction pointer or address, if specified. The default number of instructions displayed is five. If you specify a line count argument, the tool displays the specified number of extra instructions before and after the current instruction pointer or address. The last line count used becomes the default for the current session. If you specify a delta, the number specified will be added to the current instruction pointer or specified address to begin disassembling.
d[own] [count]	Moves the stack frame pointer down the stack toward frames called by the current frame for inspection purposes. If you do not specify an argument, the stack frame pointer moves down one frame. If you specify an argument, the stack frame pointer moves down by the specified number of frames. If source level information is available, the tool displays the source line for the frame. This command is frequently used in conjunction with the up command.
du[mp] address [count]	Dumps a block of memory, with the output in hexadecimal or decimal format depending on the debugger's mode (see mode). The address argument is the address of the block of memory. The count argument is the number of bytes to dump.
ex[it]	Stops the current process and exits the debugger. You can use the quit command in the same way you use exit.
f[unceval] [class::] function [ arg0 arg1 ...argn]	Evaluates the specified function on the current thread. The tool stores the new object in the variable $result and can use it for subsequent evaluations. Valid arguments are limited to other variables, 4-byte integers, and the constants Null, True, and False. Note For a member function, the first argument should be an object of the class or derived class to which the member function belongs.
g[o] [count]	See cont.
h[elp] [command ...]	Displays descriptions for the specified commands. If you do not specify any arguments, Cordbg.exe displays a list of debugger commands. You can use the ? command the same way you use help.
ig[nore] [event]	Displays a list of event types or causes the specified event type to be ignored by the debugger. If you do not specify an event argument, the tool displays a list of event types, where event types that are ignored are marked "off" and event types that stop the debugger are marked "on." If you specify an argument, the tool ignores events of the specified type. To set an event type to stop the debugger, use the catch command. The event argument can be one of the following event types: e[xceptions] [exception type] The tool adds the exception type to a list of first chance exceptions to ignore. If you do not specify an exception type, the tool ignores all first chance exceptions. The exception type is case sensitive, for example, System.ArgumentException. u[nhandled] Unhandled exceptions c[lass] Class load events m[odule] Module load events t[hread] Thread start events
i[n] [count]	See step.
k[ill]	Stops the current process. The debugger remains active to process further commands.
l[ist] option	Displays a list of loaded modules, classes, or global functions. The option argument can be one of the following: mod Lists the loaded modules in the process. cl Lists the loaded classes in the process. fu Lists global functions for each module in the process.
m[ode] [[mode name {0\|1} ]	Sets and displays debugger modes for various debugger features. To set a value, specify the mode name and a 1 for "on" or 0 for "off." If you do not specify an argument, the tool displays a list of current mode settings. The modes are persisted in the Windows registry between runs of Cordbg.exe. For more information, see the table of debugger mode arguments.
newo[bj] class	Creates a new object using the current thread. The tool stores the new object in the variable $result and can use it for subsequent evaluations.
newobjnc class	Creates a new object using the current thread without running a constructor on the object. The new object is initialized to zero. The tool stores the new object in the variable $result and can use it for subsequent evaluations.
news[tr] string	Creates a new string using the current thread. The tool stores the new object in the variable $result and can use it for subsequent evaluations.
n[ext] [count]	Steps the program to the next source line, stepping over function calls. If you do not specify an argument, the tool steps one source line. If you specify an argument, the tool steps the specified number of lines. You can use the so command the same way you use next.
ns[ingle] [count]	Steps the program one or more instructions, skipping over function calls. If you do not specify an argument, the tool steps one instruction. If you specify a count argument, the tool steps the specified number of instructions.
o[ut] [count]	Steps the program out of the current function. If you do not specify an argument, the tool performs a step out once for the current function. If you specify an argument, the tool performs a step out the specified number of times.
pa[th] [new path]	Displays or sets the path used to search for source files and debugging symbols. If you do not specify an argument, the tool displays the current path. If you specify a new path argument, it becomes the new path used to search for source files and debugging symbols. This path persists between sessions in the Windows registry.
p[rint] [variable name]	Displays one or more local variables along with their values. If you do not specify an argument, the tool displays all local variables and their values. If you specify an argument, the tool displays the value of only the specified local variable. For details, see Using the print command in the Examples section.
pro[cessenum]	Enumerates all managed processes and the application domains in each process.
q[uit]	See exit.
ref[reshsource] [source file]	Reloads the source code for a given source file. The source file to be reloaded must be part of the currently executing program. After setting a source file path with the path command, you can use the refreshsource command to bring in missing source code.
regd[efault] [force]	Sets the default just-in-time (JIT) debugger to Cordbg.exe. The command does nothing if another debugger is already registered. Use the force argument to overwrite the registered JIT debugger.
reg[isters]	Displays the contents of the registers for the current thread.
rem[ove] [breakpoint id, ...]	See delete.
re[sume] [~] [tid]	Resumes the thread specified by the tid argument when the debugger continues. If you use the ~ syntax, the tool resumes all threads except the specified thread. If you do not specify an argument, the command has no effect.
r[un] [executable [args]]	Kills the current process (if there is one) and starts a new one. If you do not specify an executable argument, this command runs the program that was previously executed with the run command. If you specify an executable argument, the tool runs the specified program using the optionally supplied args. If Cordbg.exe is ignoring class load, module load, and thread start events (as it is by default), the program stops on the first executable instruction of the main thread.
set variable value	Sets the value of the specified variable to the specified value. The value can be a literal or another variable. For details, see Using the set command. in the Examples section.
setip line number	Sets the next statement to execute to the specified line number.
sh[ow] [count]	Displays source code lines. If you do not specify an argument, the tool displays the five source code lines before and after the current source code line. If you specify an argument, the tool displays the specified number of lines before and after the current line. The last count specified becomes the default for the current session.
si [<count>]	See step.
so [<count>]	See next.
ss[ingle] [count]	Steps the program one or more instructions, stepping into function calls. If you do not specify an argument, the tool steps into only one instruction. If you specify an argument, the tool performs the specified number of steps.
s[tep] [count]	Steps the program to the next source line, stepping into function calls. If you do not specify an argument, the program steps to the next line. If you specify an argument, the program steps the specified number of lines. You can use the si command or the in command the same way you use step.
stop [[file:] line number] \| [[class::] function[:offset]] \| [=0xaddress]	See break.
su[spend] [~] [tid]	Suspends the thread specified by the tid argument when the debugger continues. If you use the ~ syntax, the tool suspends all threads except the specified thread. If you do not specify an argument, the command has no effect.
t[hreads] [tid]	Displays a list of threads, or sets the current thread. If you do not specify an argument, the tool displays the list of all threads that are still alive and that have run managed code. If you specify an argument, the tool sets the current thread to the specified thread.
up [count]	Moves the stack frame pointer up the stack toward frames that called the current frame for inspection purposes. If you do not specify an argument, the stack frame pointer moves up one frame. If you specify an argument, the stack frame pointer moves up by the specified number of stack frames. If source level information is available, the tool displays the source line for the frame.
w[here] [count]	Displays a stack trace for the current thread. If you do not specify an argument, the tool displays a complete stack trace. If you specify an argument, the tool displays the specified number of stack frames.
wr[itememory] address count byte, ...	Writes the specified bytes to the target process. The address argument specifies the location in which to write the bytes. The count argument specifies the number of bytes to write. The byte arguments specify what to write to the process. If the number of bytes in the list is less than the count argument, the tool wraps the byte list and copies it again. If the number of bytes in the list is more than the count argument, the tool ignores the extra bytes.
wt	Steps the application by native instructions, starting from the current instruction and printing the call tree as it goes. The tool prints the number of native instructions executed in each function with the call trace. Tracing stops when the tool reaches the return instruction for the function in which the command was originally executed. At the end of the trace, the tool prints the total number of instructions executed. This command mimics the NT Symbolic Debugger wt command, and you can use it for basic performance analysis. Currently, the tool only counts managed code.
x modulename ! string_to_look_for	Displays symbols in the specified module that match the pattern specified by the string_to_look_for argument. You can use the asterisk () character in the string_to_look_for* argument to indicate to the tool to match anything. The tool ignores any characters after the * character.
? [command ...]	See help.
>filename	Writes all executed commands to the specified filename. If you do not specify filename, the command stops writing commands to the file.
<filename	Reads and executes commands from the specified filename.
